Minecraft CD Player

COMPLETE

The Build

A working scale model of the Minecraft jukebox: insert a CD into the top and it plays music. I made it as a physical build for fun, combining the game's recognizable block form with a real CD player.

Mechanism / Enclosure

A slot-loading CD mechanism sits on a mount inside a plywood housing. The top opening provides access to the disc slot, so the enclosure and drive placement have to preserve the insertion path. The exterior uses a carved note pattern to carry the jukebox appearance into the physical build.

Playback / Audio

The build uses an SMSL PL100 CD player feeding a Clyxgs TPA3116D2 amplifier board, with two Dayton ND65-8 drivers. A PB240A1 power bank supplies the portable system. Integrating the playback hardware into the jukebox housing connects the visual design to a working audio system.

Current State

The assembled player plays music from CDs. This build is complete.

The jukebox — plywood v1 housing with carved note pattern, CD loaded through the top
FIG 01 — The jukebox — plywood v1 housing with carved note pattern, CD loaded through the top

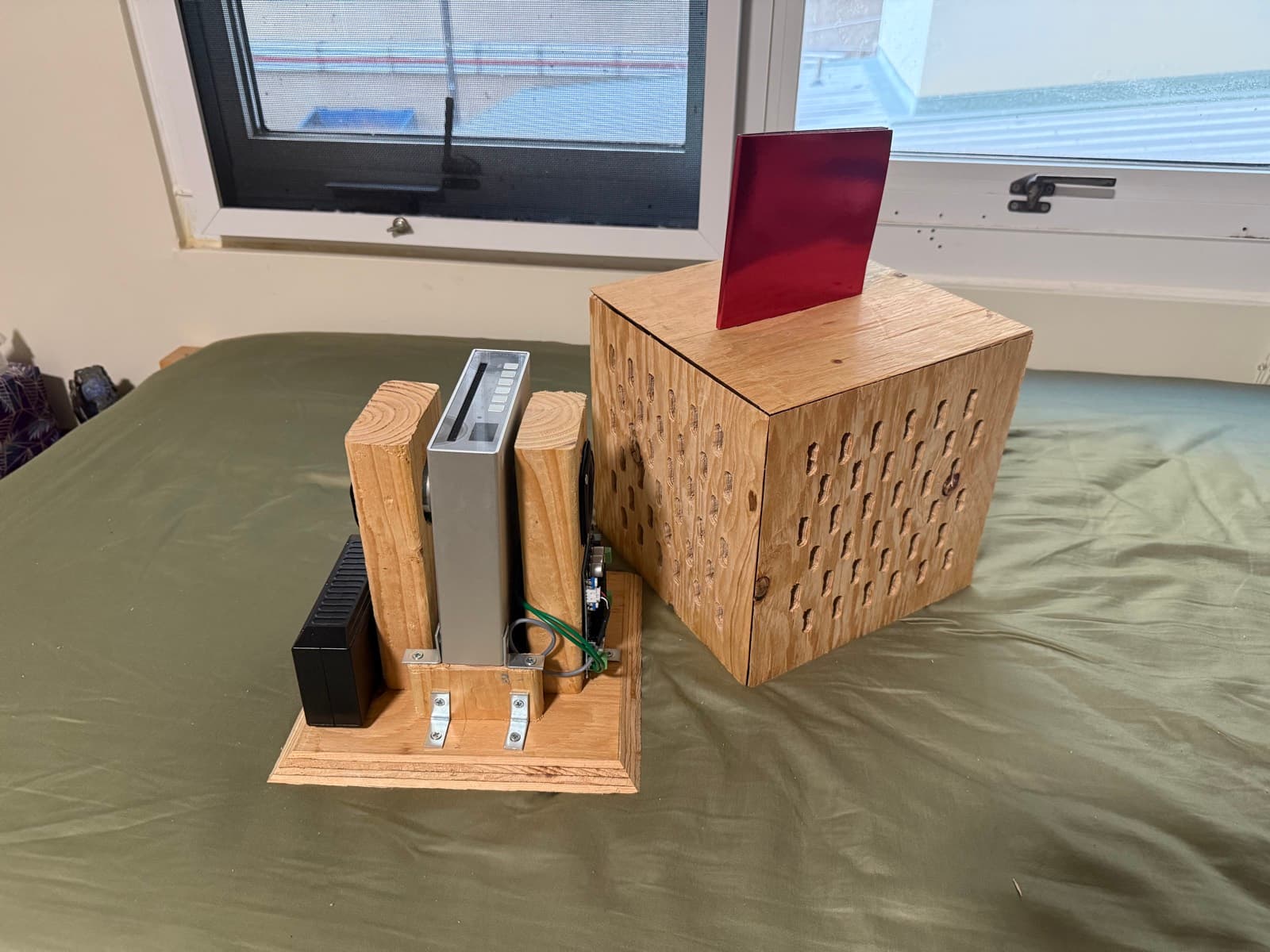

Drive mechanism beside the housing — slot-load CD drive on its mount
FIG 02 — Drive mechanism beside the housing — slot-load CD drive on its mount
